Vertical Form Fill Seal Machine For Vertical Three Sides Sealing Green Tea Bag
Applications:
Suitable for packing granule, beans, chips, coffee, snack food, pet food, candy, Jelly, dry fruits, non food products, cereals etc.
Features:
1. HMI controller with touch screen interface for easy operation.
2. Hot printer and film feeding system synchronously woring together (OPTIONAL).
3. One pcs bag former, quikcly changes with no tools.
4. Photo sensor automatically tracks eye marks.
5. Stainless steel structure for excellent durability and sanitation.
6. Side film pulling belt , doubel position correction by power adjusting film carrier , which keeps even film conveyance and bag forming.
7. Two independent sealing cylinders, excellent airtight, transparent sealing.
8. Applied with PLC, color touchable screen, high auto, operate & maintenance easily. The machine runs smoothly, low noisy.
Technical parameters:
| Model | LA-T520 |
| Packing Speed | 2-40 bags/min. |
| Film Width | 200-500mm |
| Films | Laminated film, OPP/CPP, OPP/CE, PET/PE etc |
| Bag Length | 340-600mm |
| Bag Width | Front width: 40-240mm Side width: 30-100mm |
| Edge Seal Width | 5-10mm |
| Powder | 3kw, 220V, 50/60Hz |
| Air Consumption | 0.4m3/min, 0.6MPa |
| Dimension | 1620x1480x2050mm |
| Gross weight | 520kg |
| Bag Style | Quad seal bag(stabile bag, block bottom bag) |
| Options | Servo drives for cross seal |
| Gas flush device |
| Air expeller |
| Hole punch device |
| Flip device for feeding hopper |
| Flip device for bottom hopper |
| Bag support |
Optional device:
| Euro hole/Round hole punch device | Dual servo motor Device |
| PE film sealing device | Bag defelector |
| Chain bag device | Static Charge Eliminator |
| Film tracing device | Flip device for feeding hopper |
| Guesst device | Gas flush |
| Bag support | Flip device for bottom support |

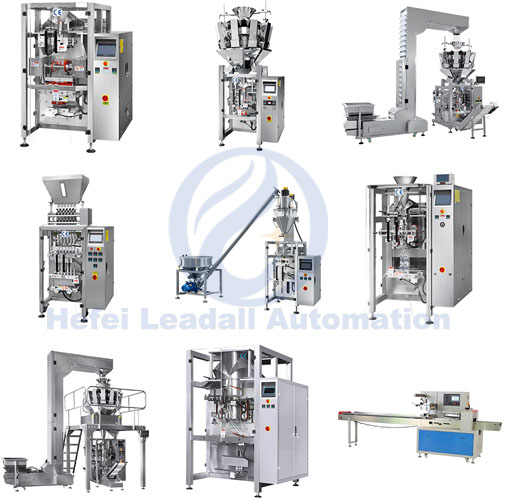

Relevant supporting equipment:
1. VFFS Packaging Machine line
2. Multihead weigher, Linear weigher, Auger filler, Counting machine
3. Automatic vacuum packing machine line
4. Automatic secondary packing machine(put small bags into large bags)
5. 5-50kg Automatic bag feeding packing machine
6. Check weigher, Metal detector, Conveyor, Elevator
7. Automatic carton case packing line
8. Robot Palletizing Line
More detailed machine photos:
